Many industrial applications require motors to stop quickly, safely and repeatedly. While some applications can rely on the motor naturally coasting to a stop, others demand far greater control over stopping time.
This is where a DC braking control panel can provide a simple, reliable and cost-effective solution.
Whether used on saws, woodworking machinery, fans, grinders or other rotating equipment, DC braking helps reduce stopping times without the complexity of a variable speed drive.
What Is DC Braking?
DC braking works by injecting direct current (DC) into the stator windings of an AC motor after the power supply has been disconnected.
Rather than allowing the motor to coast to a stop, the injected DC creates a stationary magnetic field inside the motor. As the rotor continues to turn through this magnetic field, a braking torque is generated, slowing the motor much more quickly than it would naturally.
Unlike mechanical brakes, there are no friction surfaces to wear out, making DC braking an attractive option for many industrial applications.
When Is a DC Braking Control Panel Used?
DC braking is commonly used where a faster stopping time improves safety, productivity or machine control.
Typical applications include:
- Circular saws
- Band saws
- Woodworking machinery
- Grinding machines
- Abrasive cutting equipment
- Large fans and blowers
- Centrifuges
- Certain conveyor applications
In many cases, DC braking is used to help machinery meet operational or safety requirements by reducing the time taken for rotating parts to come to rest.
Benefits of a DC Braking Control Panel
Faster Stopping Times
The primary benefit is a significant reduction in motor stopping time compared with allowing the motor to coast naturally.
Improved Operator Safety
Reducing the time that blades, wheels or other rotating equipment continue spinning after power is removed can contribute to safer machine operation.
Reduced Mechanical Wear
Unlike traditional friction brakes, DC braking introduces no physical contact between braking components, helping reduce maintenance requirements.
Simple and Reliable
DC braking systems are well proven, straightforward to operate and suitable for many industrial environments.
Cost-Effective Solution
For applications that simply require faster stopping, a dedicated DC braking control panel may offer a more economical solution than installing a full variable speed drive.
Is DC Braking Suitable for Every Application?
Not always.
Several factors need to be considered before selecting a DC braking solution, including:
- Motor size
- Supply voltage
- Load inertia
- Required stopping time
- Frequency of stopping
- Ambient operating conditions
Applying excessive braking current or braking for too long can cause unnecessary motor heating. Every application should therefore be assessed to ensure the braking system is correctly specified.

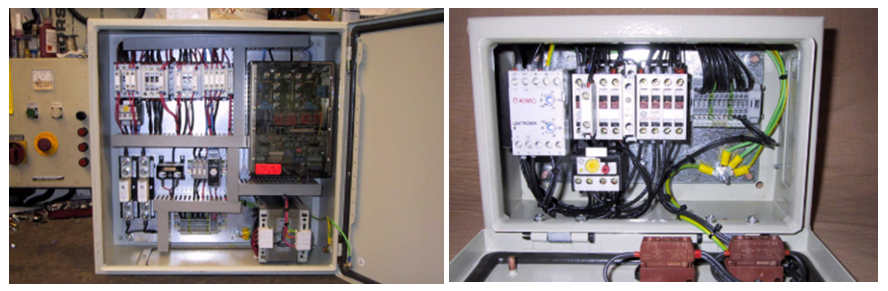

Bespoke DC Braking Control Panels
Off-the-shelf braking units may be suitable for some installations, but many industrial applications benefit from a bespoke control panel designed around the machine’s specific requirements.
A custom-built panel can incorporate:
- Motor protection
- Braking timers
- Contactors
- Safety interlocks
- Emergency stop integration
- Operator controls
- Status indication
- Custom terminal arrangements
- Integration with existing machinery
Designing the complete panel ensures all components work together as a single, reliable system while simplifying installation and future maintenance.
How Modern Drives & Controls Can Help
Modern Drives & Controls Ltd designs and manufactures bespoke DC braking control panels for industrial applications across a wide range of sectors.
Our engineers work closely with customers to understand the machine, operating conditions and stopping requirements before specifying a suitable solution using high-quality industrial components.
Whether you require a straightforward replacement panel or a fully integrated braking system as part of a machine upgrade, we can provide a solution tailored to your application.
Final Thoughts
DC braking is a proven method of reducing motor stopping times while avoiding the wear associated with mechanical braking systems.
When correctly designed and applied, a bespoke DC braking control panel can improve machine safety, reduce downtime and provide years of reliable operation.
If you’re considering upgrading an existing machine or require advice on the most suitable braking solution, the engineering team at Modern Drives & Controls Ltd is always happy to help.
