Lenze Inverters

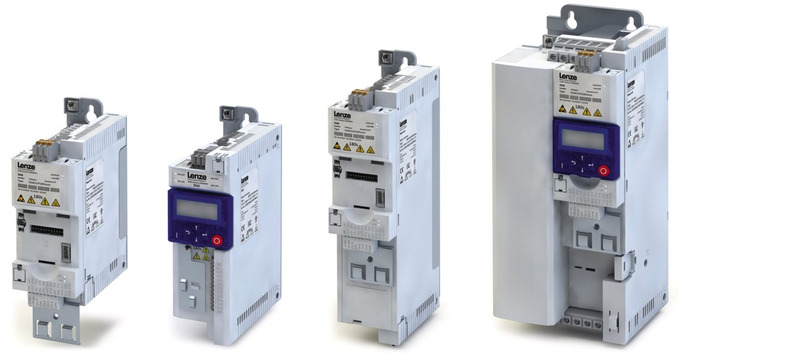

i500 is the new inverter series in the 0.25 to 75 kW power range. Its distinguishing features: a streamlined design, scalable functionality and exceptional user friendliness. i500 provides a high-quality inverter that already conforms to future standards in accordance with the EN 50598-2 efficiency classes (IE). Overall, this provides a reliable and future-proof drive for a wide range of machine applications.

Features:

• Space saving design: 60 mm wide, 130 mm deep, also zero-clearance mounting
• Innovative interaction options enable better set-up times than ever
• The wide-ranging modular system enables various product configurations depending on machine requirements
• i500 is recommended for applications for pumps, fans and conveyor, traction, winding, forming, tool and hoist drives.

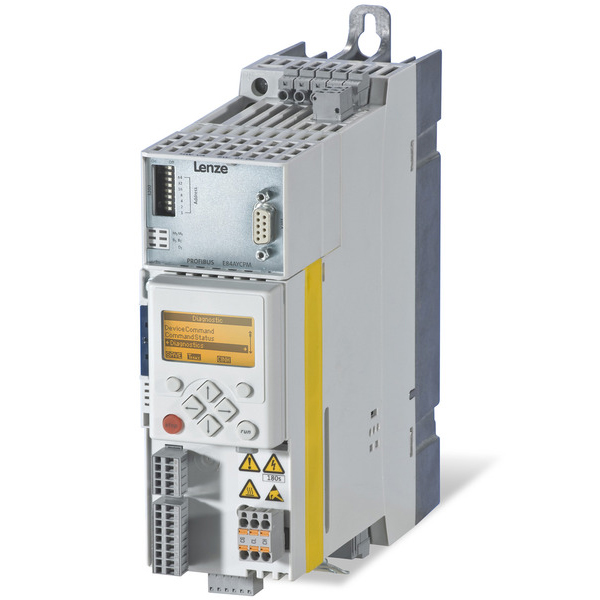

Help you stay on top of the situation.

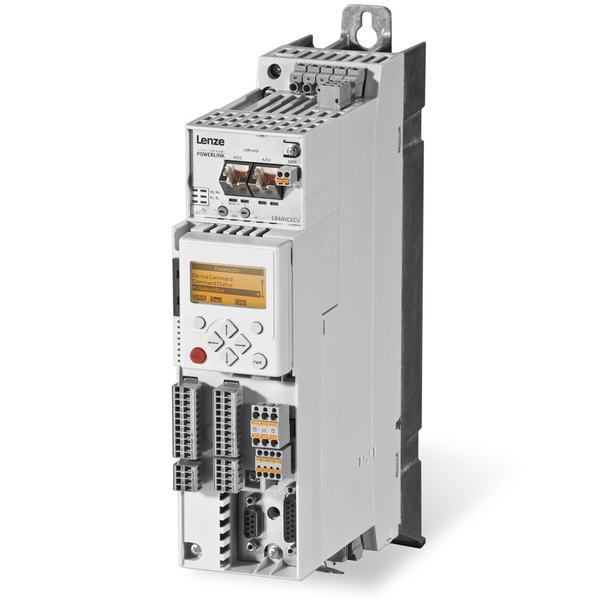

Inverters for easily controlled motion and positioning.
Power range: 0.37 to 45.0 kW (1.3 to 89 A)
Particularly suitable for: rotary indexing tables or warehousing systems in the field of intralogistics, bag form fill and seal machines in the packaging industry.

Advantages

• Connections: start/stop, analog inputs/outputs (2/2), freely programmable digital inputs/outputs (7/4)
• Communication: CANopen on board, EtherCAT, Ethernet POWERLINK, PROFIBUS, PROFINET
• Suitable for drive applications with or without speed feedback
• Integrated positioning control
• Up to 15 selectable positioning points included each of the corresponding travel profiles
• Integrated brake management
• "VFC eco" energy-saving function
• STO safety function

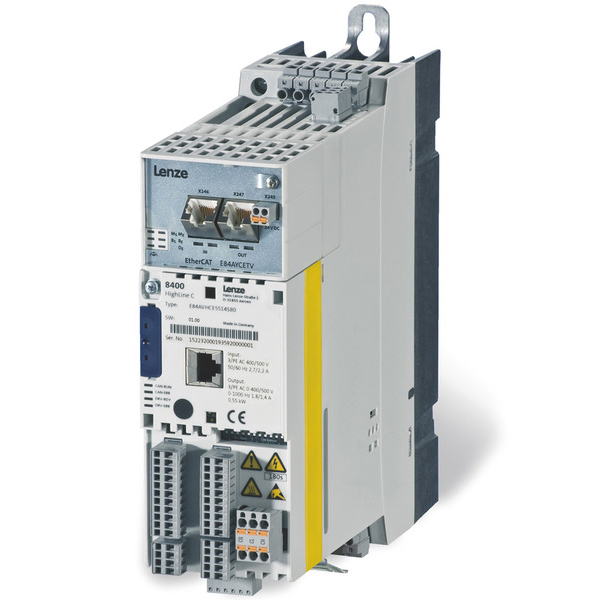

Easily achieve high dynamic performance and precision.

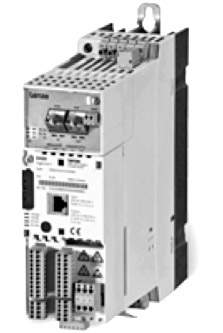

Inverter for controlled, dynamic motion.
Output current: 1.3 to 89 A (0.37 to 45 kW)
Particularly suitable for handling and positioning systems as well as travelling drives and hoist drives used in a wide variety of application areas. Also the ideal choice for synchronous drives, e.g. in continuous material processing applications.

Advantages

• Connections: start/stop, analog inputs/outputs (2/2), freely programmable digital inputs/outputs (7/4)
• Resolver and multi-encoder input
• Communication: CANopen on board, EtherCAT, Ethernet POWERLINK, PROFIBUS, PROFINET
• Also supports synchronous motors
• Axis bus for electrical shafts
• Integrated brake management
• "VFC eco" energy-saving function
• STO safety function

Ensure movement in complex applications.
Inverters for easy, controlled motion.
Power range: 0.37 to 45.0 kW (1.3 to 89 A)
Particularly suitable for: transverse materials handling equipment or palletizers in the field of intralogistics, extruders in the plastics industry, filling systems in the packaging industry.

Advantages

• Connections: start/stop, analog inputs/outputs (1/1), freely programmable digital inputs/outputs (4/1)
• Communication: CANopen on board, EtherCAT, Ethernet POWERLINK, PROFIBUS, PROFINET
• Suitable for drive applications with or without speed feedback
• Integrated brake management
• "VFC eco" energy-saving function
• STO safety function

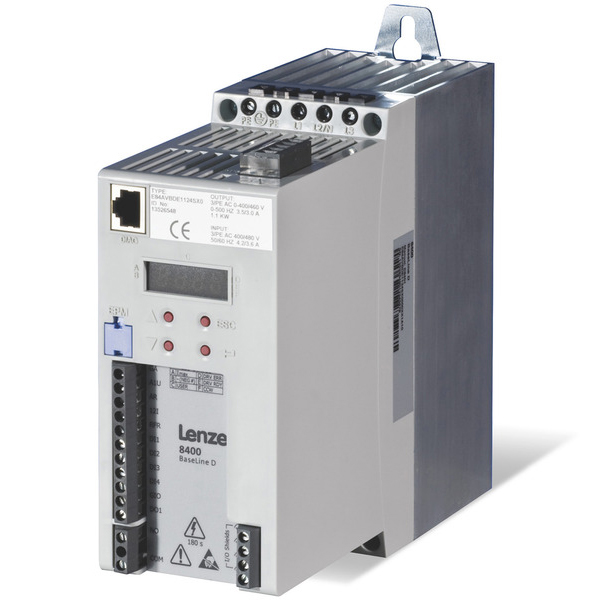

Bring controlled movement to basic applications.
Inverter for controlled motion with communication.
Power range: 0.25 to 3.0 kW (1.3 to 9.5 A)
Particularly suitable for: conveyor drives, pumps or fans.

Advantages

• Connections: start/stop, analog input, freely programmable digital inputs and outputs (4/1)
• Communication: CANopen, optional
• Quick and easy commissioning
• Integrated motor overload protection

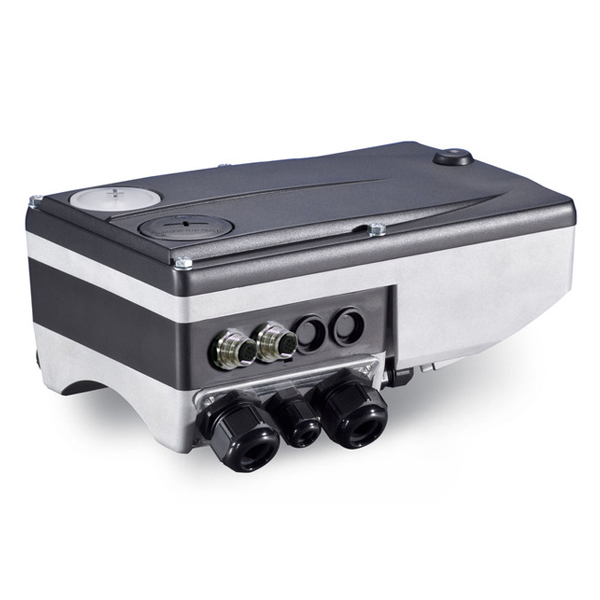

Driving can be so easy.

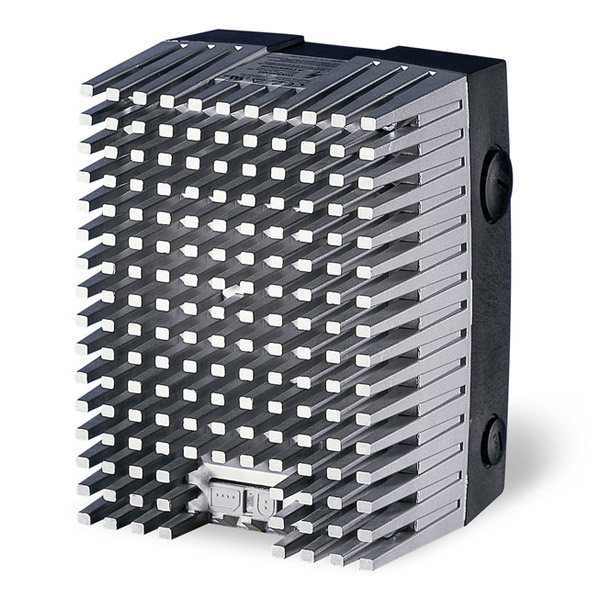

Decentralised inverters: mounted directly on the motor or to the wall.
Power range: 0.37 to 7.5 kW (1.3 to 16.5 A)
Particularly suitable for: travelling and conveyor drives in the field of intralogistics, fans and pump drives.

Advantages

• Connections: start/stop, analog input, freely programmable digital inputs and outputs (5/1)
• Communication: AS interface, CANopen, EtherCAT, PROFIBUS, PROFINET
• Easy commissioning with plug technology (plug and drive)
• Modular design consisting of drive unit, communication unit and wiring unit modules
• Large diagnostics LED display clearly visible from a distance
• "VFC eco" energy-saving function
• STO safety function
• High degree of protection up to IP66

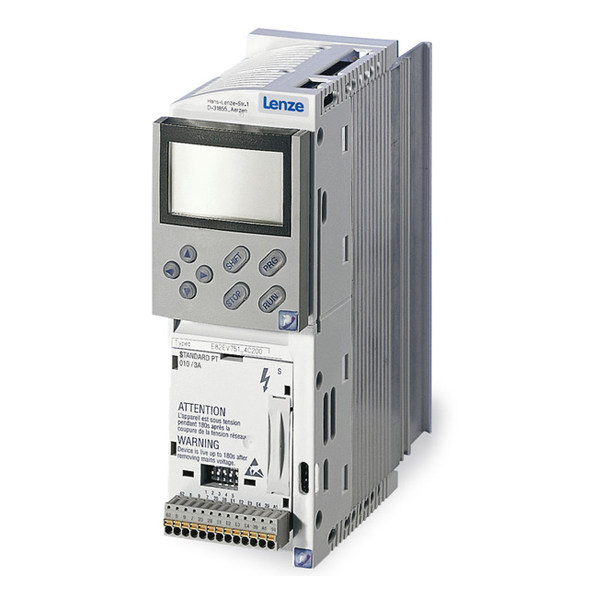

Variable functions in copmlex applications.
High-performance inverter for controlled motion.
Power range: 0.25 to 45 kW (1.1 to 88 A)
Particularly suitable for: turntables in the field of intralogistics, production lines in the food industry and industrial manufacturing operations.

Advantages

• Connections: start/stop, analog input, freely programmable digital inputs and outputs (4/1)
• Communication: RS-485 Modbus, CANopen, Profibus, Ethernet IP and DeviceNet
• Enclosure IP31
